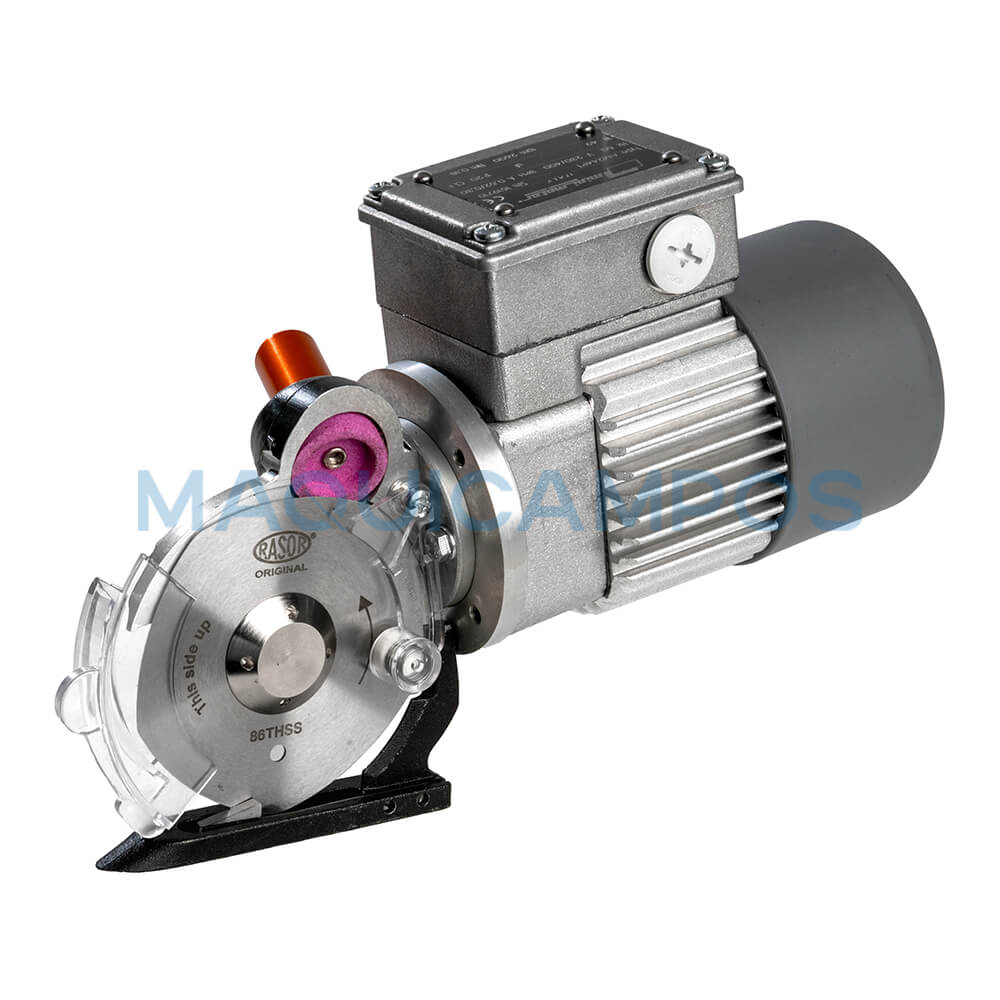

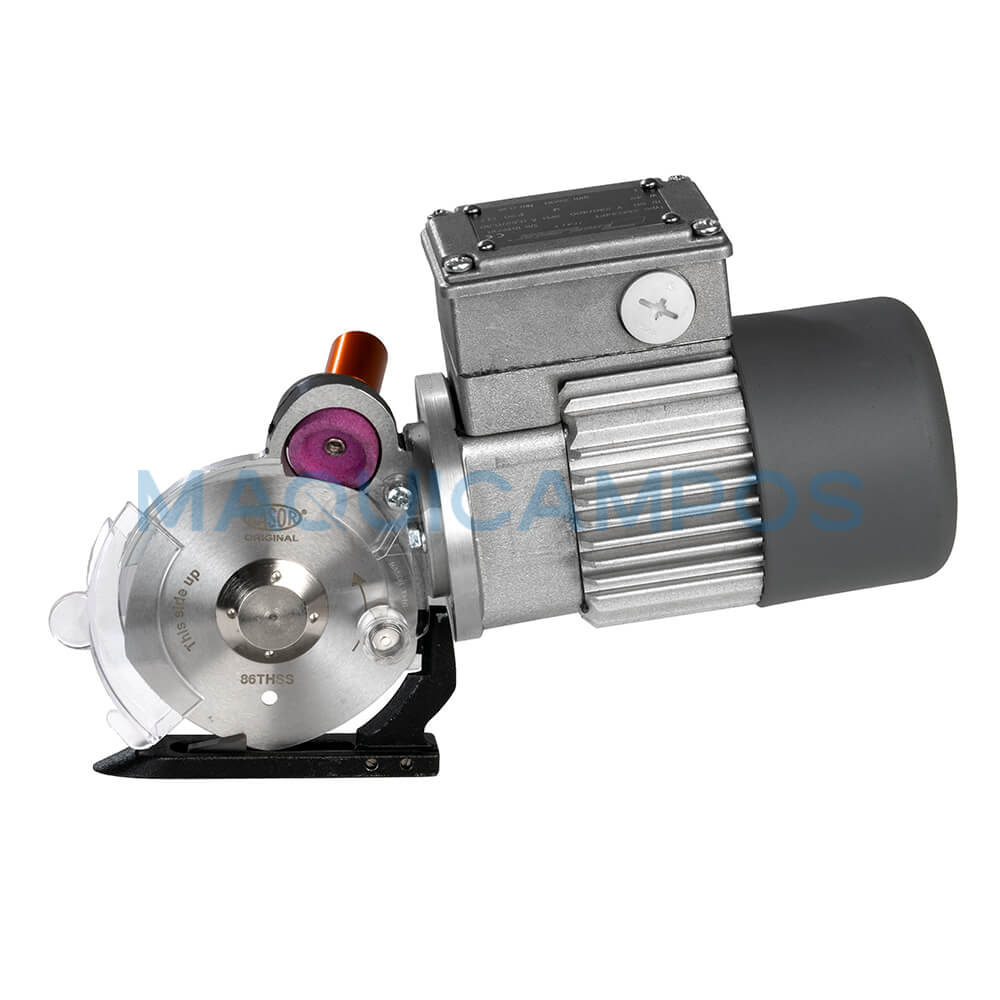

Rasor GRT-CROSS
Round Cutting Machine

ref GRT-CROSS

Few units

This powerful 3phase horizontal O.E.M. unit, developed and produced by Rasor®, is designed to cut a wide range of textiles and flexible elastomers up to 25 millimeters thick. The new GRT-CROSS provides exeptional power and is remarkably easy to use. The new gears reach up to 550 r.p.m and cutting is smooth and flawless. The GRT-CROSS is designed with safety and ease of use in mind. The industrial 3 phases motor, in combination with extra strong steel brass gears, guarantee low maintenance and exceptional durability. The special flange allows to install the unit in different ways. The design allows installation in confined spaces, and it can be used for cross, stripe and endless cutting. Featuring a finger protection and a semi-automatic sharpening system, blade reconditioning is done in less than 10 seconds, without the need for blade disassembly. The motor housing is held by a central foot fitted behind the blade in central position. This system allows the pressure to spread and guide the machine through the fabrics on both sides of the blade. The knife is half-free on both sides to avoid winding problems even with tough fibers. It can cuts a wide range of materials, including classic fabrics, the latest hybrid weavings and many other materials. The GRT-CROSS will be the ideal choice for a wide range of your cutting applications.

Brand: Rasor
Model: GRT-CROSS
Power: 55W
Motor: 3-phases asynchronous 380/400* V, 50Hz
Blade diameter: 86 mm (3.4″), with hard metal counterblade
Blade descr.: 86THSS, 8-edges, HSS steel
Blade speed: 550 r.p.m
Cutting ability: 25 mm (1″)
Consumption: 0.3A
Protection: IP65 – CL F
Electric cable length: 1 mt (without plug)
Minimum brightness for working operations: 200 LUX
Vibrations at start up: < 2.5 m/sec 2
Temperature: 0-55ºC
Umidity Range: 10-95% without condensate *This model can be set up at 3-phase 220V
Net weight (with power supply cord): 2400g
Total weight (with packaging): 3200g
