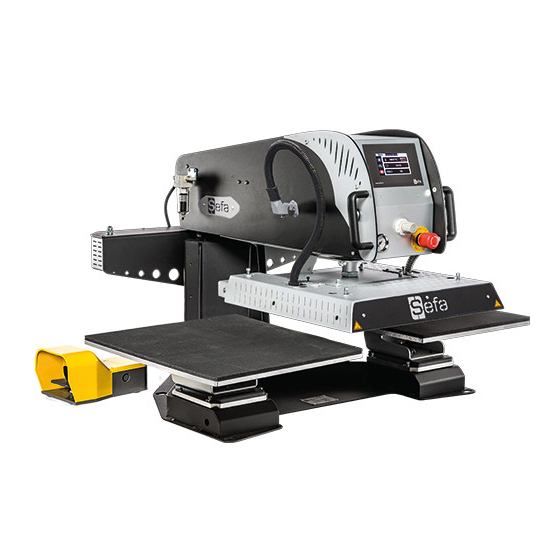

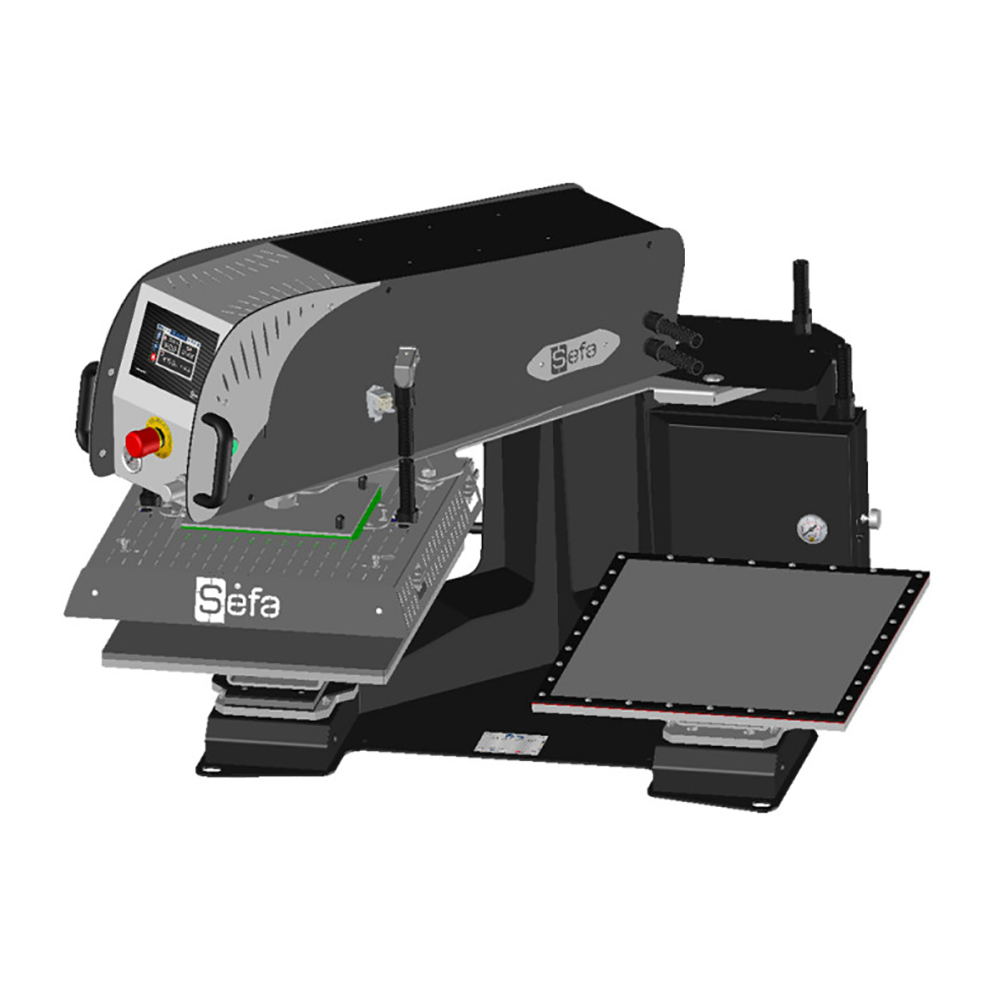

Sefa e-DUPLEX AIR PRO (40x50cm)
Pneumatic Heat Press with Double Plate

ref E-DUPLEX-AIR-PRO

Out of stock

The e-DUPLEX AIR PRO is our most comprehensive dual-platen model. It includes all the features of the e-DUPLEX PRO, plus the added option of membrane platens for marking thick garments with raised surfaces such as workwear and winter clothing.
Hybrid pneumatic press with dual standard platens and membrane platens, featuring automatic head shuttle.
Two Nomex® 40x50cm covers and two Nomex® 45x55cm covers included.
As the membrane inflates, it evens out raised surfaces, allowing transfers to be applied over linings, thick seams, buttons, zippers, topstitched pockets and other garment reliefs.
Suitable for high-volume flex and screen print transfers, textile and rigid substrate sublimation, DTG, laser printing and textile marking on thick garments with raised areas.

Features:
• Automatic opening, closing and head shuttle
• High heating power, ideal for DTG pre-treatment drying
• Foot pedal for hands-free garment positioning and holding before and during pressing
• Quick-change platens
• Anti-pinch safety guard
• Allows marking directly over garment reliefs
• Combined membrane and standard platen operation
• T-shirts can be loaded from the front or rear of the platens
• Allows masked-time operation on the free platen
• Large working space between, below and behind the platens
• Three different press modes
• Multifunction touchscreen control panel
• Independent press time for each platen
• Temperature control
• Independent pre-heating time for each platen
• 10 programmable recipes (time / temperature / substrate)
• 3 operating modes: single platen, semi-automatic, fully automatic
• Adaptive regulation depending on the application (sublimation, textile, DTG)
• Dual piece counter
• ECO mode
• Standby mode
• Made in France

Brand: Sefa
Model: e-DUPLEX AIR PRO
Type: Pneumatic, Membrane
Operation: Swing - rotating plate
Voltage: 220V
Power: 2200W
Amperage: 10A
Plate size: 40x50cm, 45x55cm
Temperature: 0~220ºC
Heating time to reach 180ºC: 12 min
Time: 0~600s
Pressure: 625 g/cm²
Max. thickness: 45mm
Applications: Flex, ChromaLuxe, Direct to Garment, Pretreatment, Sublimation Rigid Substrate, Textile Sublimation, Screen Printing, Laser Transfer
Dimensions: 713x891x1099mm
Weight: 193kg
